PU Rubber Round Belt has many advantages as follow: Is widely used
in transmission and distribution products for the textile,
clothing, food, packaging, printing, machinery, electronic, glass,
chemicals, automobiles, beverages, furniture, toys, paper and other
industries; Especially in the following industry.
1) Outstanding abrasion resistance
2) High tensile and tear strength
3) Resistance to oils, fuels, and oxygen
4) Fabulous weatherability and high impact resistance
5) Low
Applications:
--------------------------------------------------------------------------------
PU Rubber Round Belt is widely used in transmission and
distribution of the following industry.
--- Newspaper conveying,
--- Packing machines,
--- Ceramic and stoneware processing plants, such as glazing Lines,
transmission lines, polishing line etc.
--- Floor and roof tiles conveying,
--- Wood Working machineries,
--- Textile machines,
--- Paper industry machines,
--- Food grading machines, other food processing machines.
Features:
--------------------------------------------------------------------------------
PU Rubber Round Belt has many advantages as follow: Is widely used
in transmission and distribution products for the textile,
clothing, food, packaging, printing, machinery, electronic, glass,
chemicals, automobiles, beverages, furniture, toys, paper and other
industries; Especially in the following industry.
1) Outstanding abrasion resistance
2) High tensile and tear strength
3) Resistance to oils, fuels, and oxygen
4) Fabulous weatherability and high impact resistance
5) Low compression set

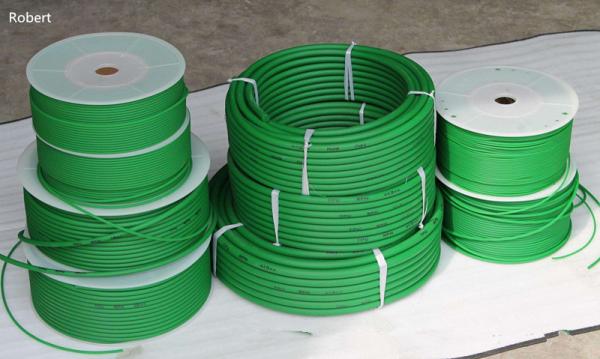

Polyurethane (PU) Round Belt
a: diameter: 2mm--30mm
b: surface: vivid color with glossy surface; neat granule spread
fairly for rough surface type.
Wuxi Robert Industrial belt Co., Ltd. is located in WUXI city
JiangSu province China,which is only 100KM away from SHANGHAI
city.With convenient transprotation,our factory is easily
accessible. Our factory has a staff of 90 workers, including 11
engineers who are technology professors in belts field guaranteeing
good quality of our belts.And based on 12 hours working time ,our
monthly production is 130,000 SQM,so,we can meet requirements of
orders of any production amount.
| Items NO. | Least radius of gyration | Stretching rate | Maximum tensile rate | Hardness | Length of rolled |
| DIA(mm) | In | mm | % | Kg | Lbs | Shore( A) | Length of rolled |
| 2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 95 | 400 |
| 2.5mm | 0.87 | 22 | 1.5-3% | 0.4 | 0.9 | 95 | 400 |
| 3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
| 3.5mm | 1.18 | 30 | 1.5-3% | 0.95 | 2.1 | 90 | 400 |
| 4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 90 | 200 |
| 5mm | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 90 | 100 |
| 6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 90 | 100 |
| 7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 90 | 100 |
| 8mm | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 90 | 100 |
| 9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 90 | 50 |
| 10mm | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 90 | 50 |
| 12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 90 | 30 |
| 15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 90 | 30 |
| 18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 90 | 30 |
| 20mm | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 90 | 30 |
